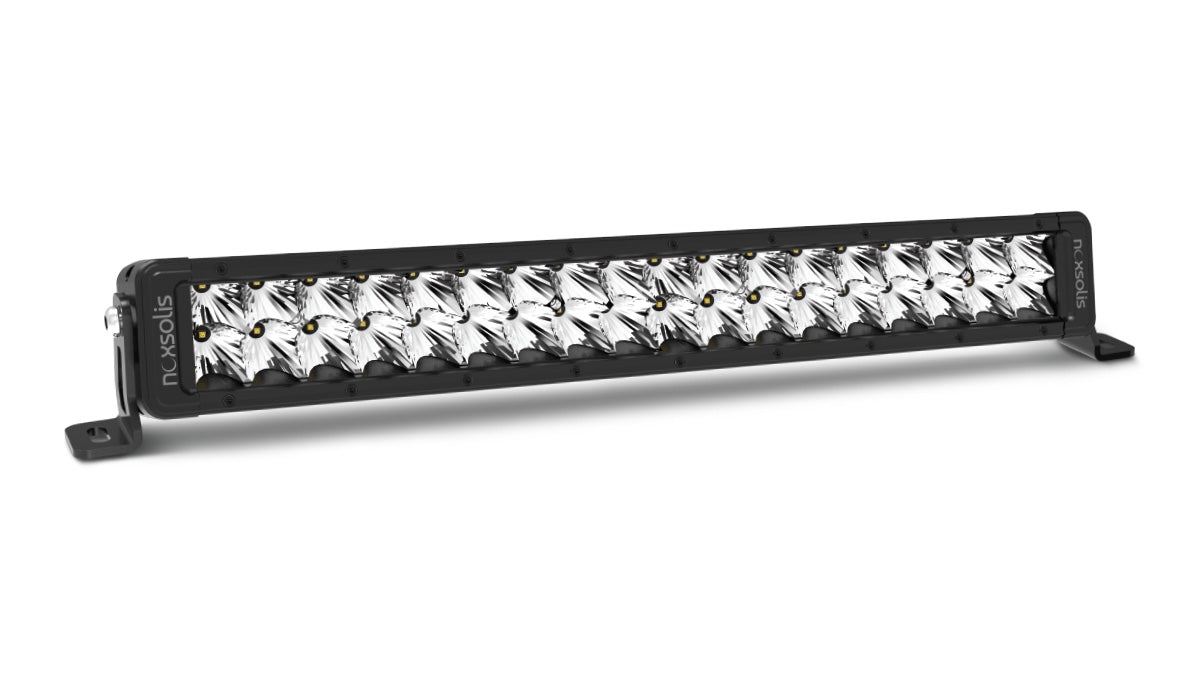

NX822 – LED Light Bar – 22″ Double Row – Combo Beam

Name: NX822 – LED Light Bar – 22″ Double Row – Combo Beam
Brand: noxsolis
SKU: NX822
Price: 280.27 AUD
Availability: InStock

Product Description

The NOXSOLIS NX822 22" Double Row LED Light Bar is part of the NX8 series, offering an ideal all-around lighting solution for a wide variety of vehicles. Whether used alone or as part of a larger lighting setup, this high-performance light bar provides both wide-area illumination and long-range visibility, making it perfect for off-road adventures and highway driving.

Detailed wiring instructions using the NX210 wiring harness can be found > HERE <

Key Features:

Combo Beam Pattern: Designed to offer a combination of both wide-area flood lighting and focused spot illumination, the combo beam provides excellent visibility from side to side and down the road. The beam reaches 1 Lux at 770m, making it ideal for any driving environment.

High-Performance Osram OSLON® LEDs: Equipped with powerful Osram LEDs, the NX822 emits a bright, clear white light at 5700K, ensuring excellent clarity and safety during both off-road and on-road driving.

Durable Construction: Built with high-strength materials, the NX822 features a die-cast aluminum housing and an impact-resistant polycarbonate lens, ensuring durability and reliability even in the toughest environments.

Waterproof & Shock Resistant: With an IP67 & IP69K waterproof rating, the NX822 is fully sealed against dust, water, and debris, allowing it to perform reliably in all weather conditions and off-road environments.

Mounting Flexibility: Comes with both side and bottom mounting brackets, offering versatile installation options on bull bars, nudge bars, roof racks, or number plate brackets. All necessary mounting hardware is included for easy setup.

EMI Approval: Compliant with R10 EMI standards, reducing electromagnetic interference with other vehicle electronics.

Specifications:

Beam Distance: 1 Lux at 770m

Raw Lumens: 10,133

Wattage: 160W

Current Draw: 8.91A @ 13.8V, 5.14A @ 24V

Electrical Circuit: Dual

Weight: 1.56kg

Connection: 2 Pin Deutsch DT

Colour: White light 5700K

Voltage: 12-24V

Waterproof Rating: IP67 & IP69K

Warranty: 3 Years

$280.27 AUD

NX822 – LED Light Bar – 22″ Double Row – Combo Beam

$280.27 AUD

Mounting flexibility for all applications

The NX8 Light Bars come with two different mounting options, side or bottom mount, allowing you to mount the product onto almost every type of bull bar, nudge bar, roof rack or number plate bracket possible. All of the required mounting hardware is supplied in the box.

The perfect combination of width and distance

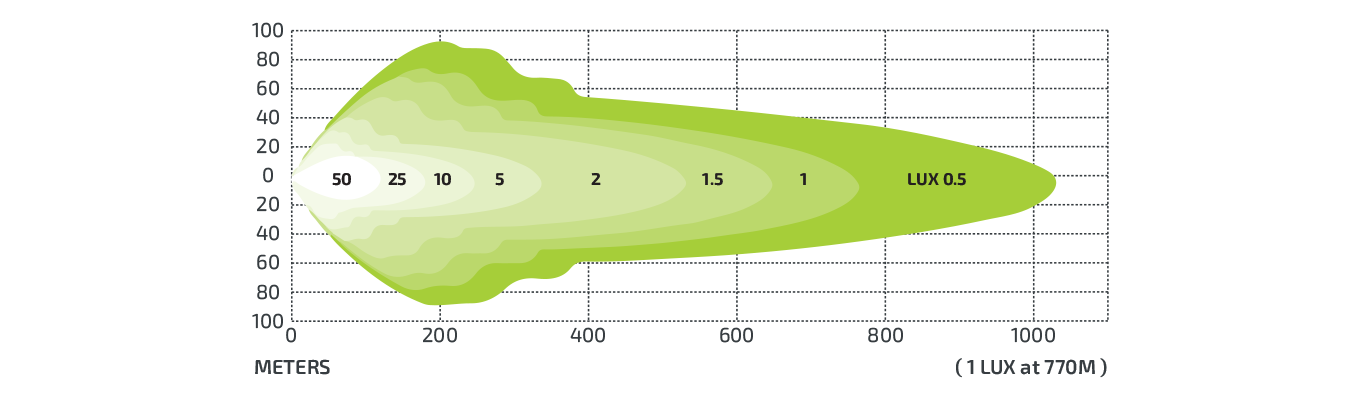

The benefit of a combo beam is that it offers both very wide spread immediately in front of the vehicle, from fence to fence, as well as a strong punch down the middle of the road to improve road illumination.

With 10133 raw lumens and a beam that reaches 1 Lux at 770m, this is truly the perfect beam for Off-Road driving or On-Highway driving.
