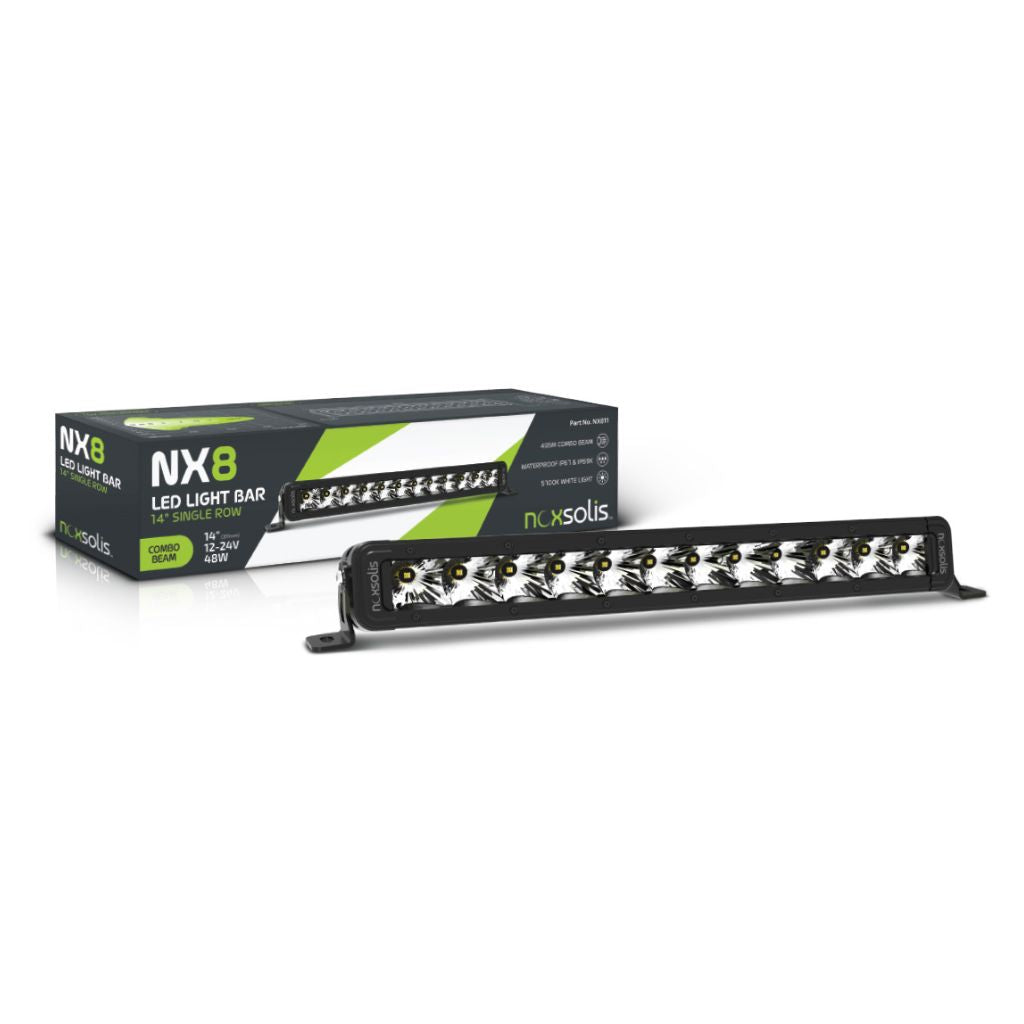

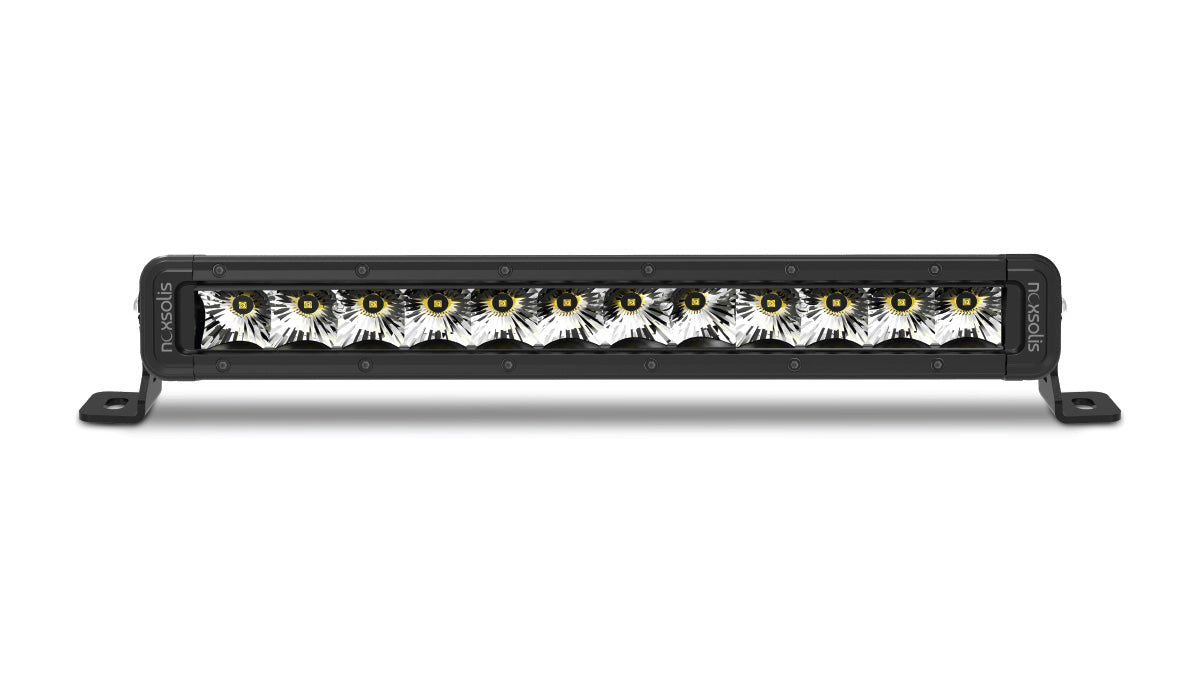

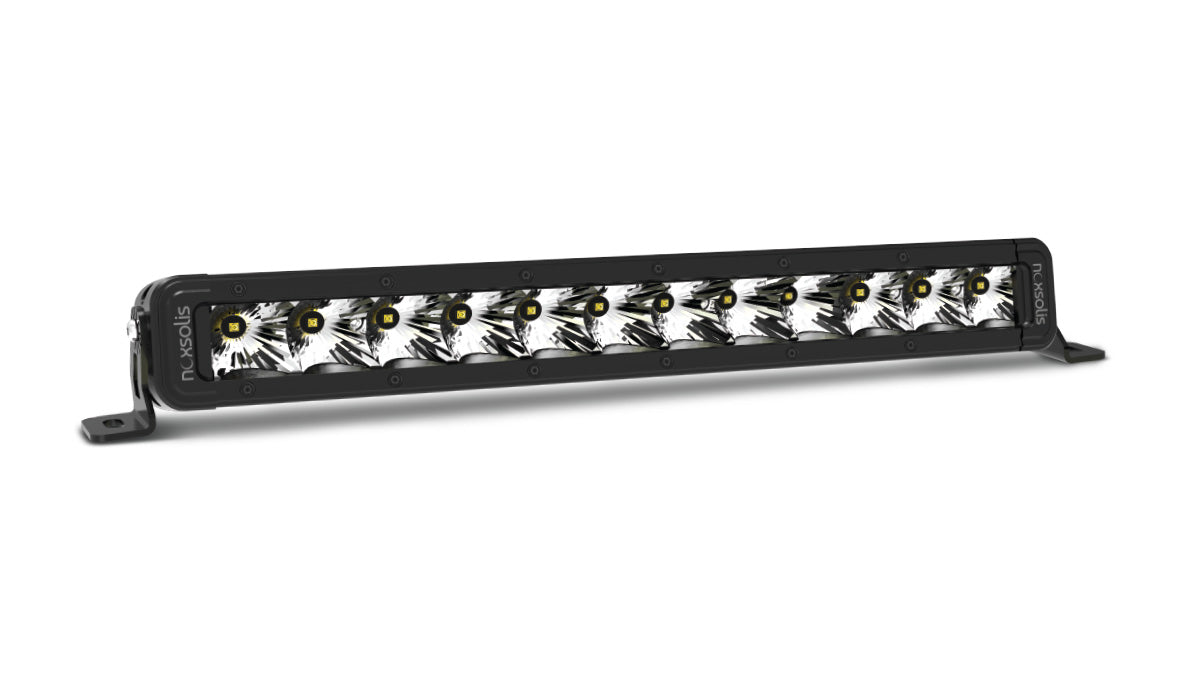

NX811 – LED Light Bar – 14″ Single Row – Combo Beam

Product Description

The NOXSOLIS NX811 14" Single Row LED Light Bar is engineered to deliver exceptional lighting performance in a compact form. Ideal for vehicles with limited mounting space, this light bar offers a perfect balance between width and distance, ensuring optimal visibility on both highways and off-road terrains.

Detailed wiring instructions using the NX210 wiring harness can be found > HERE <

Key Features:

Combo Beam Pattern: Designed to provide a wide spread immediately in front of the vehicle, complemented by a focused beam extending down the road, enhancing overall road illumination.

High-Performance LEDs: Utilizes powerful and precise Osram OSLON® LEDs, emitting a clean, bright white light at 5700K, ensuring clear visibility in various driving conditions.

Durable Construction: Built with a robust housing and impact-resistant lens, the NX811 is designed to withstand the rigors of off-road driving and harsh environments.

Waterproof & Shock Resistant: With an IP67 & IP69K waterproof rating, this light bar is fully sealed against dust and water, making it suitable for all weather conditions.

Mounting Flexibility: Comes with both side and bottom mounting brackets, allowing for versatile installation on various vehicle types, including bull bars, nudge bars, roof racks, or number plate brackets.

EMI Approval: Approved to R10 EMI (radio interference), ensuring compliance with electromagnetic compatibility standards.

Specifications:

Beam Distance: 1 Lux at 495m

Raw Lumens: 3165

Wattage: 48W

Current Draw: 3.26A @ 13.8V, 1.89A @ 24V

Weight: 0.7kg

Connection: 2 Pin Deutsch DT

Electrical Circuit: Single

Warranty: 3 Years
$137.39 AUD
$137.39 AUD
NX811 – LED Light Bar – 14″ Single Row – Combo Beam

$137.39 AUD

Mounting flexibility for all applications

The NX8 Light Bars come with two different mounting options, side or bottom mount, allowing you to mount the product onto almost every type of bull bar, nudge bar, roof rack or number plate bracket possible. All of the required mounting hardware is supplied in the box.

The perfect combination of width and distance

The benefit of a combo beam is that it offers both very wide spread immediately in front of the vehicle, from fence to fence, as well as a strong punch down the middle of the road to improve road illumination.

With 3165 raw lumens and a beam that reaches 1 Lux at 495m, this is truly the perfect beam for Off-Road driving or On-Highway driving.

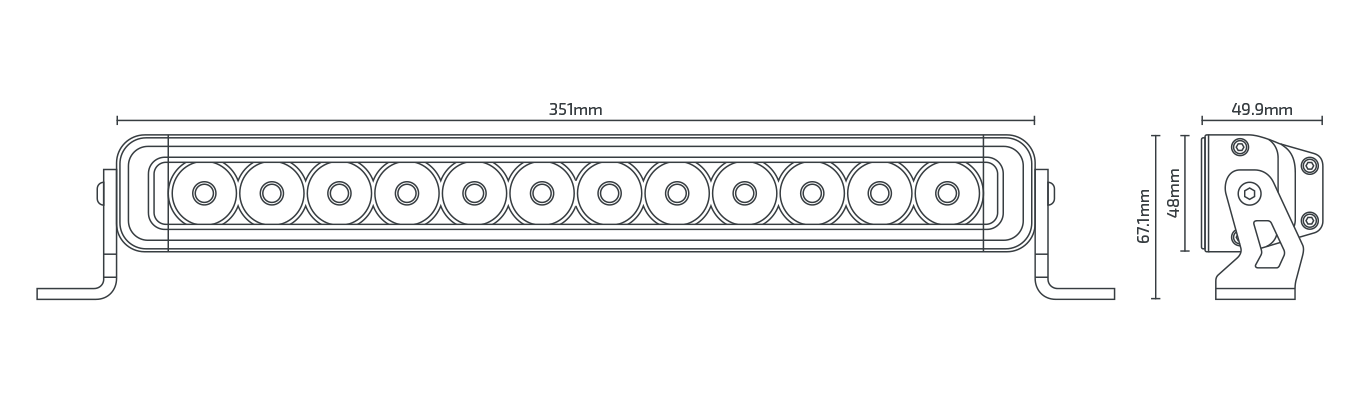

  • Dimensions

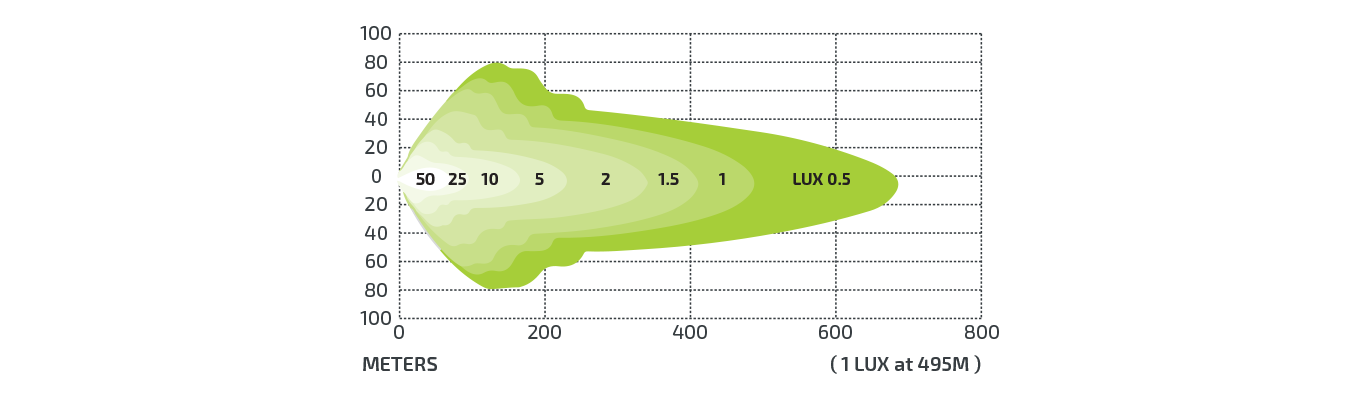

  • lux performance

  • Kit Contents

    1 x LED Light Bar
    2 x Side brackets & 3 x Bottom brackets including all mounting hardware
    Detailed wiring instructions using the NX220 heavy duty wiring harness can be found > HERE <

  • Warranty

    3 Years
