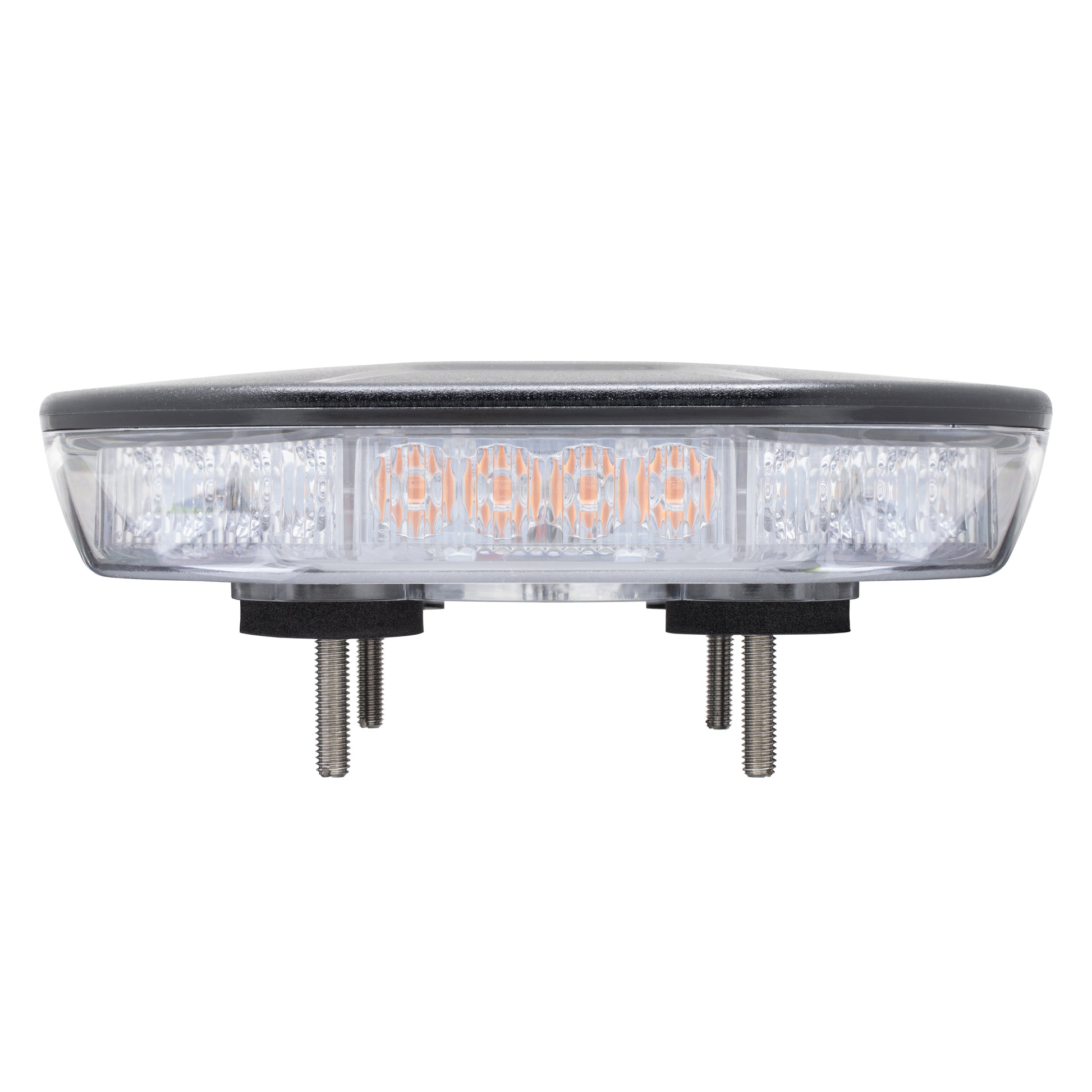

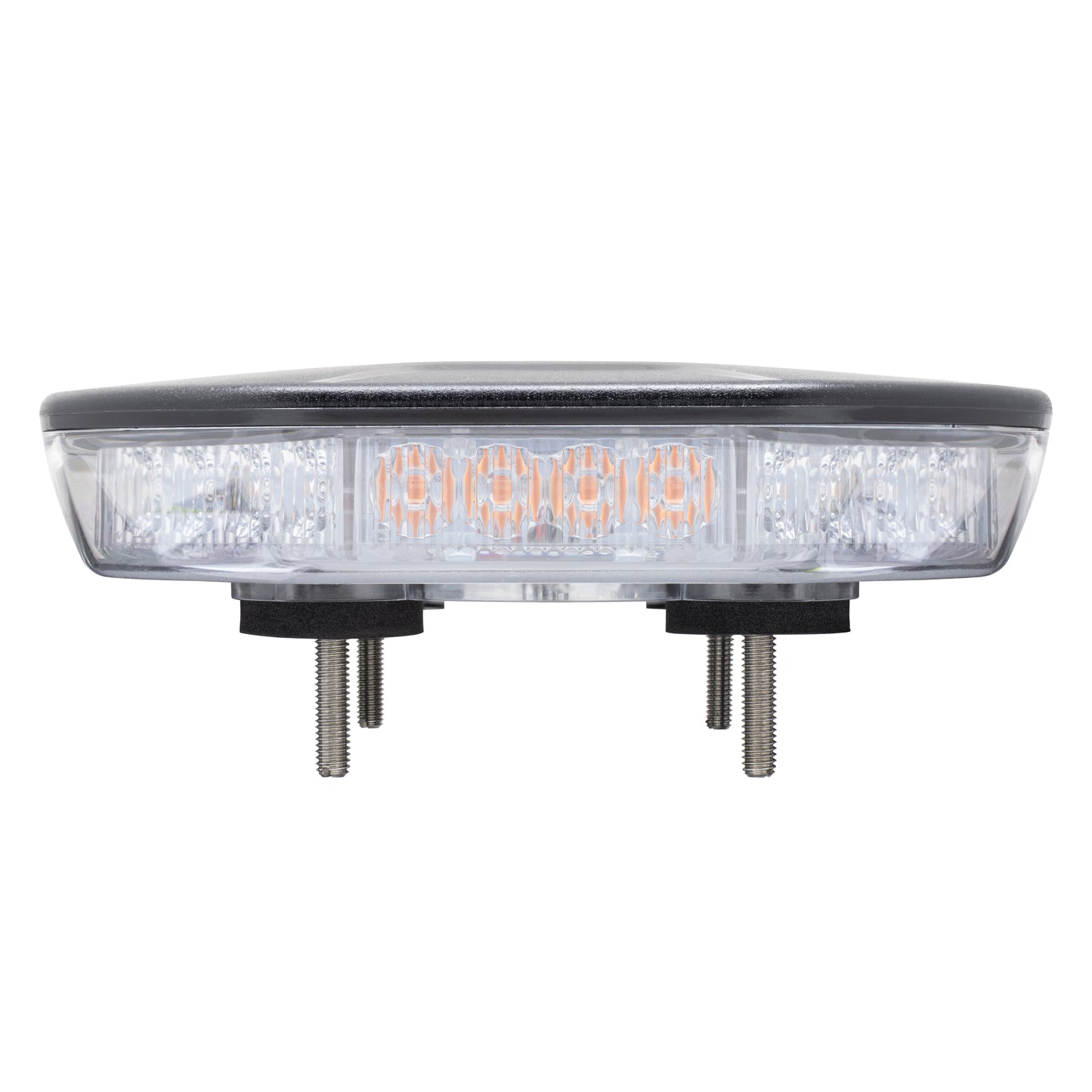

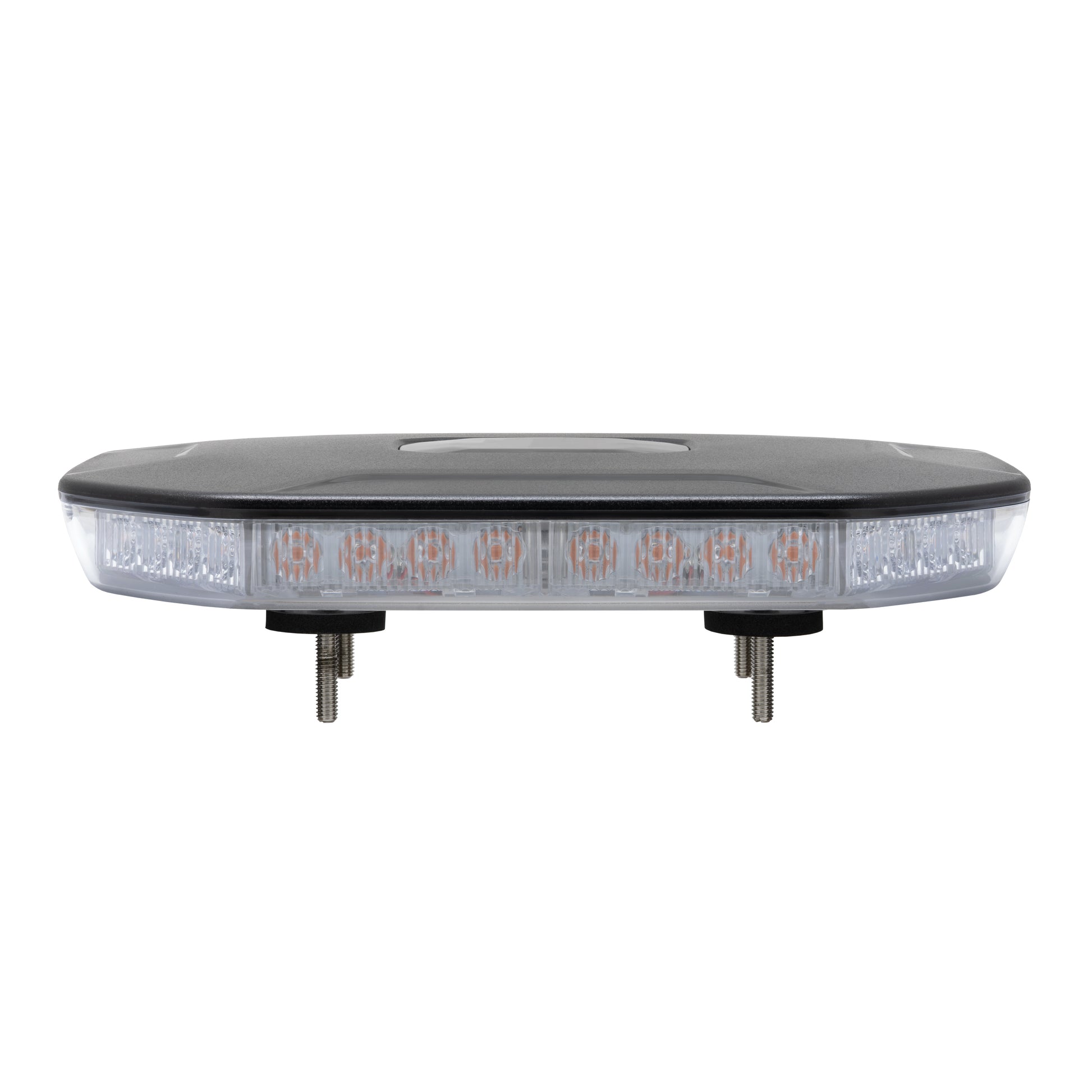

NX383 - 10" LED Mini Bar with 4 Point Bolt Mount

Product Description:

LED Mini Bars are a staple safety product for light commercial vehicles. Whether they’re operating roadside or around a large mine site, these bars with their 12+ flash modes and industry leading approval ratings mean they are ready to bolt or stick onto your vehicle and go to work.

This NX383 is a 10" mini bar with four point bolt mount hardware.

To see the flash modes in action, click on the image below.


Warranty

3 Years

Kit Contents

1 x LED Mini Bar
4 x Foam vibration dampeners
4 x Stud bolts & nuts
4 x Spring & flat washers
$176.70 AUD
$176.70 AUD
Shipping calculated at checkout.
NX383 - 10" LED Mini Bar with 4 Point Bolt Mount

$176.70 AUD

  • Specifications

    • Weight: 746g

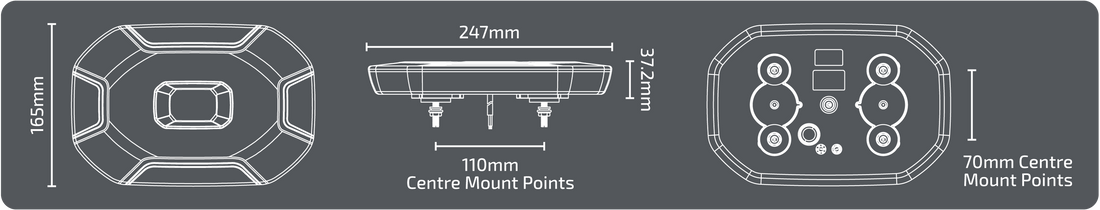

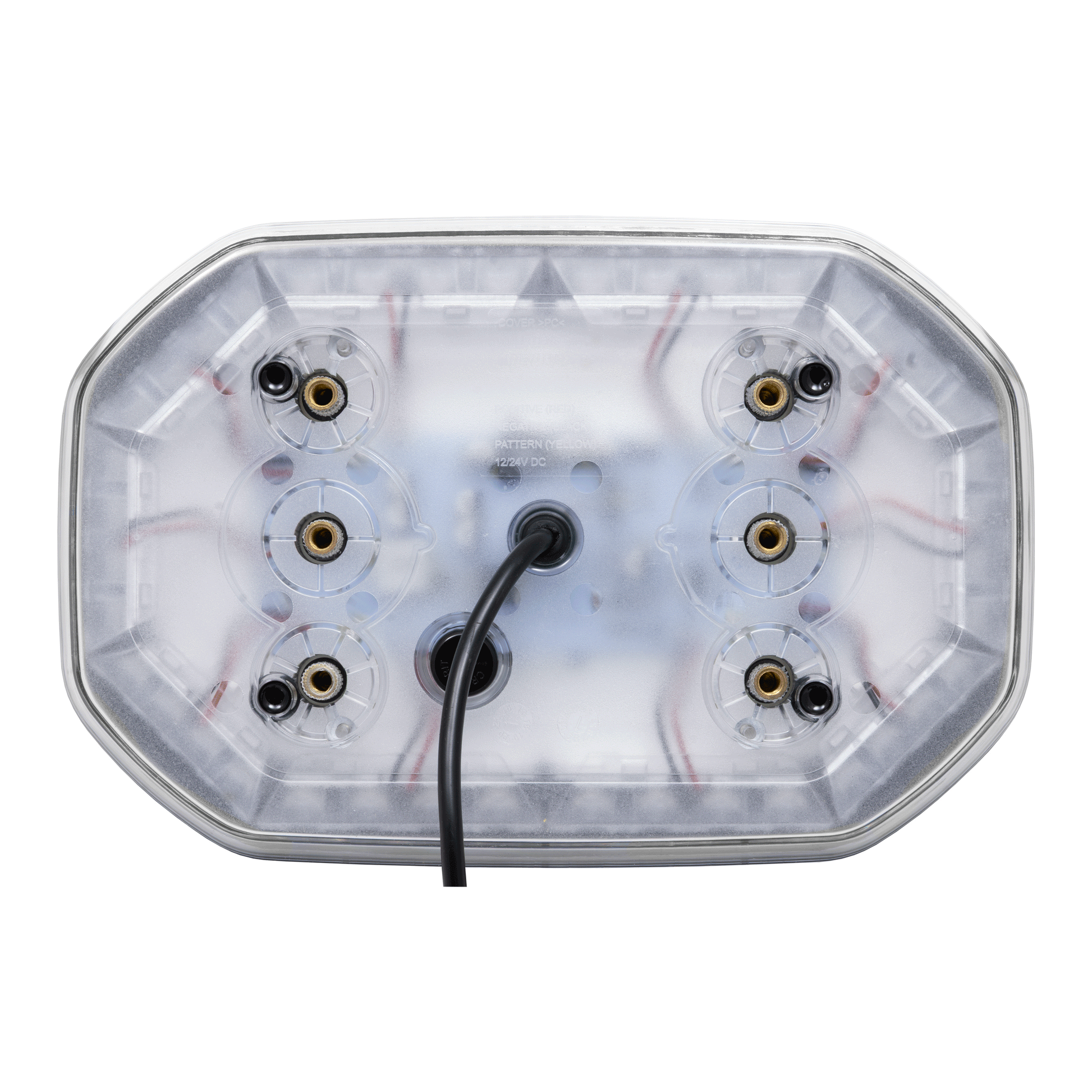

    • Mounting: Four point bolt mount
    • Wiring: 500mm hardwire fly lead
    Red: Positive
    Black: Negative
    Yellow: Mode Select

  • Range Wide Features & Specifications

    • Voltage: 12-24V (10-30V)
    • Twelve flash modes
    • Polycarbonate body & lens
    • Operating Temp: -30°C ~ +65°C
    • EMI Approvals:
    CISPR25 Class 3, ECE R10
    • Class Approvals:
    ECE R65 Class 1, SAEJ845 Class 1
    • Waterproof Ratings:
    Spray IP66, Submerge IP67
    • Maximum Current Draw:
    2.1A @ 13.8V, 1.2A @ 24V

  • Flash Modes

    1) Single Flash - ECE R65 Class 1 (125 FPM)
    2) Single Flash (75 FPM)
    3) Double Flash (125 FPM)
    4) Triple Flash (125 FPM)
    5) Rotating (120 FPM)
    6) Combination Single / Triple Flash
    7) Combination Single / Quint Flash
    8) Triple Flash - Alternating
    9) Triple Flash Alternating / Single Flash All
    10) Triple Flash Alternating / Single Flash All / Rotating
    11) Strobe (600FPM)
    12) Cruise / Solid On - 30% Brightness for night use
