NX220 – Heavy Duty Wiring Harness Kit For 1 x Light Bar (With DT-P Connection)

Name: NX220 – Heavy Duty Wiring Harness Kit For 1 x Light Bar (With DT-P Connection)
Brand: noxsolis
SKU: NX220
Price: 99.53 AUD
Availability: InStock

Product Description

The Noxsolis NX220 Heavy Duty Wiring Harness Kit is designed for easy, plug-and-play installation of light bars to your vehicle. This high-quality wiring kit ensures reliable connection and optimal performance for your light bar, whether used for off-road or on-road driving.

Warranty: 3 Years

Specifications:

Working Voltage: 12V or 24V DC
Relay: 40A
Fuse: 30A
Max Load Current: 30 Amp
Operating Temperature: -30°C ~ 70°C
Cable from Relay to Light Connector: 12AWG (275cm)
Cable from Relay to Battery Terminal: 12AWG (120cm)
Cable from Relay to Switch: 18AWG (120cm)
Cable from Relay to High Beam: 18AWG (200cm)
Light Connection: 2 Pin DT-P

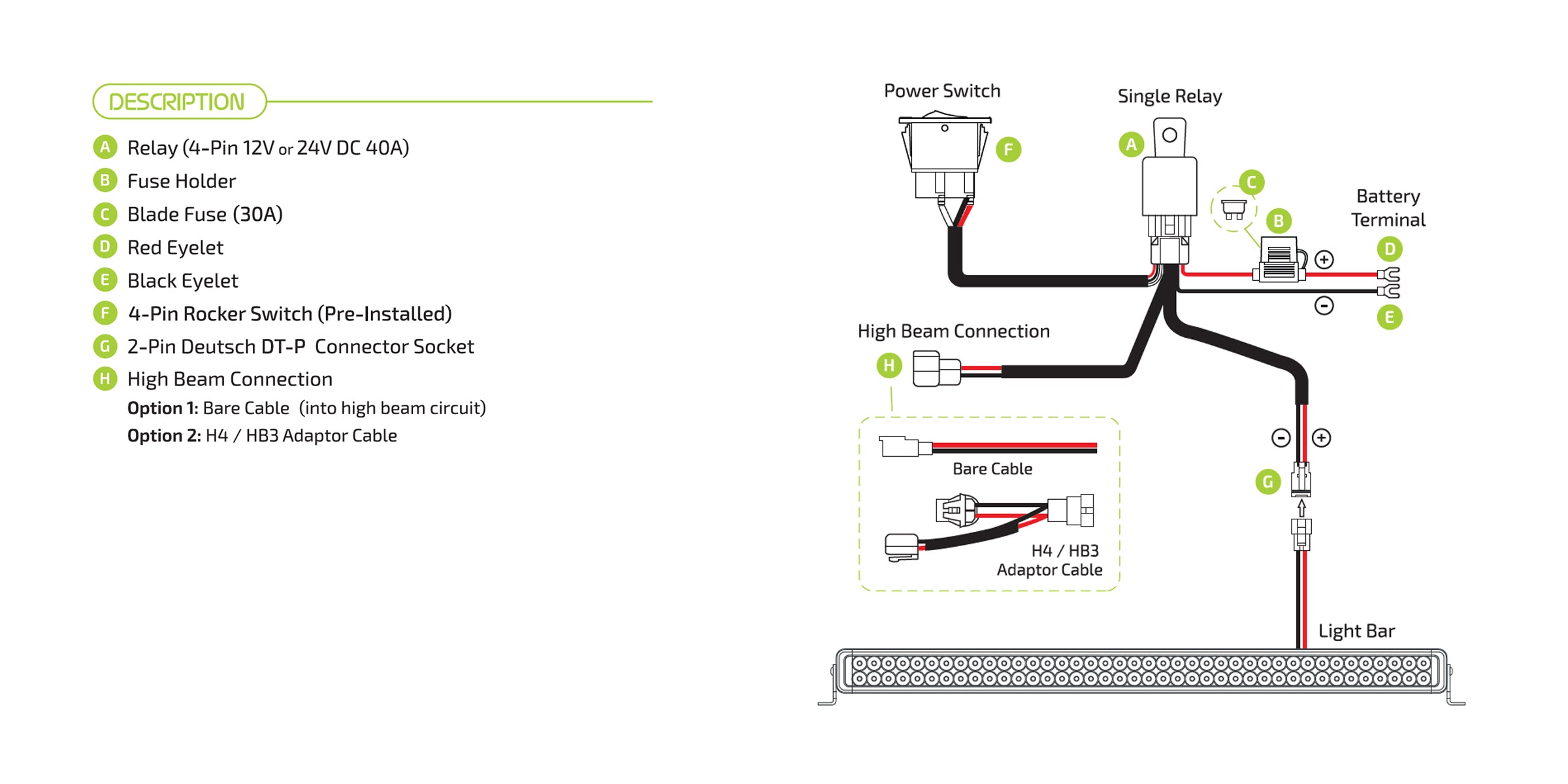

NX220 Specifications

Plug & Play Installation: The NX220 wiring harness kit is designed to provide a straightforward and secure connection to your vehicle’s electrical system. It’s specifically built for light bars, making it easy to connect your lighting setup quickly and reliably.

Suitable for 12V & 24V Systems: The harness is compatible with both 12V and 24V electrical systems, allowing for use in a wide range of vehicles, including off-road, 4x4s, and trucks.

High-Quality Construction: Designed to handle higher wattage light bars, the NX220 features durable components that can withstand tough environments. The kit includes a relay to support both high and low voltage systems.

High Beam Connections: The harness includes options for high beam connections, including HB3, H4, or bare wires, ensuring versatility in connecting your light bar based on your vehicle’s electrical setup.

Heavy Duty Components: With a maximum load current of 30 amps, the NX220 is built for performance and reliability, ensuring your light bar operates safely and efficiently.
