NX215 – Heavy Duty Wiring Harness Kit For 2 x Driving Lights (With DT-P Connection)

The Noxsolis NX215 Heavy Duty Wiring Harness Kit is specifically designed to connect your NX930 driving lights to your vehicle with ease. This plug-and-play wiring solution ensures quick, secure installation and reliable performance for your driving lights, whether you’re using them for off-road or everyday driving.

Warranty: 3 Years Standard Driving Conditions

Specifications:

  • Working Voltage: 12V or 24V DC
  • Relay: 60A
  • Fuse: 40A
  • Max Load Current: 40 Amp
  • Operating Temperature: -30°C ~ 70°C

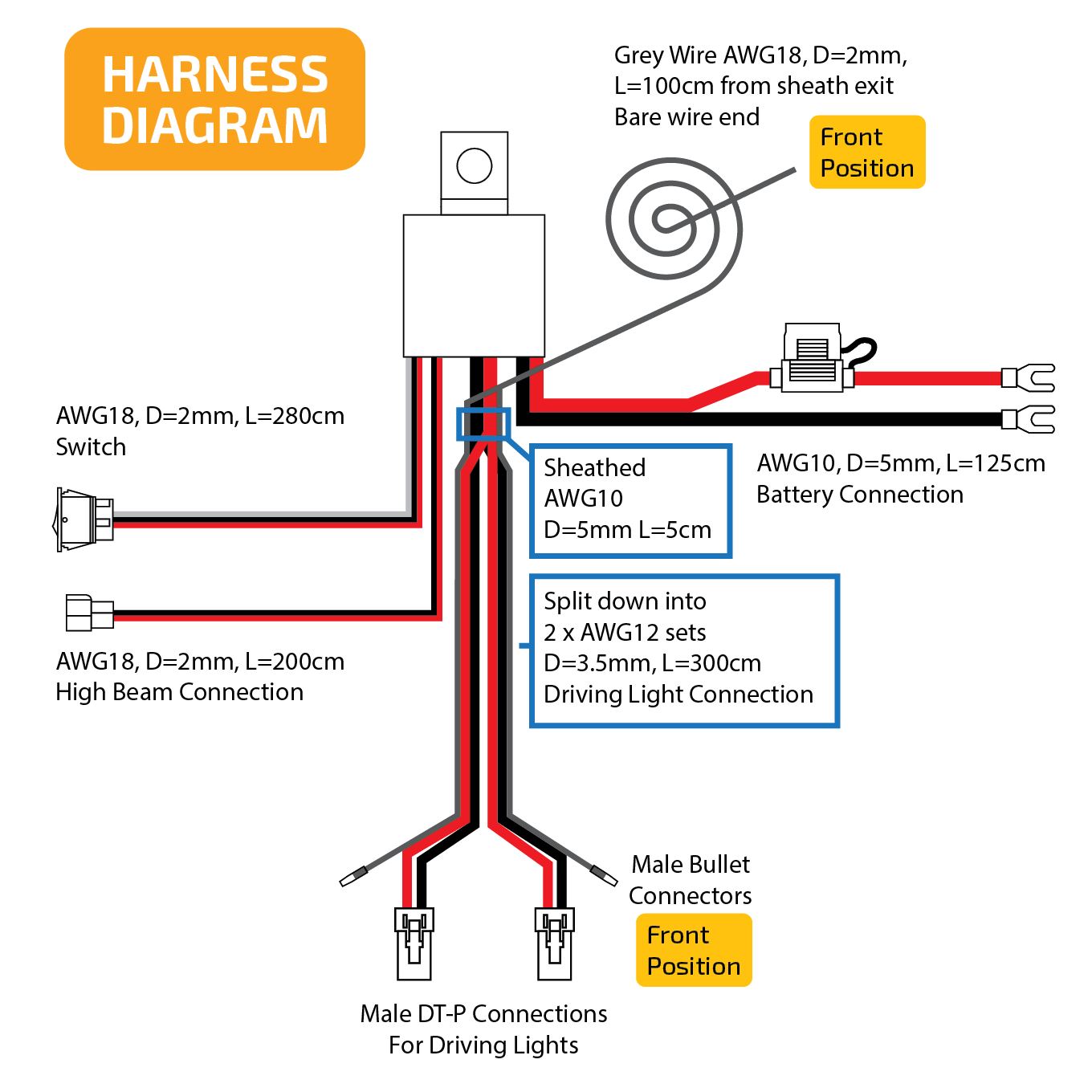

  • Cable from Relay to Light Connectors: 12AWG (300cm)
  • Cable from Relay to Battery Terminal: 10AWG (125cm)
  • Cable from Relay to Switch: 18AWG (280cm)
  • Cable from Relay to High Beam: 18AWG (200cm)
  • Included: 100cm of extended wire (18AWG) split into two male bullet connectors for front position / DRL wiring
  • Light Connection: 2 Pin DT-P

NX215 Key Features

Plug & Play Installation: The NX215 wiring harness kit makes it easy to connect two driving lights to your vehicle's electrical system, simplifying the setup process. It’s designed to work seamlessly with NOXSOLIS NX930 driving lights and other compatible lighting systems.

12V & 24V Compatibility: Whether your vehicle operates on a 12V or 24V electrical system, this harness is ready to work with either setup. It’s versatile and can be used in a wide range of vehicles, including off-road trucks and recreational 4x4s.

High Beam Connections: The harness includes options for high beam connections, including HB3, H4, or bare wires, making it adaptable to various vehicle configurations.

Fire-Resistant Protective Sheathing: For added safety, the wiring harness features fire-resistant protective sheathing that covers the entire harness, ensuring secure operation even in extreme conditions. This sheathing also houses the front position wiring for added protection.

Heavy Duty Performance: Designed to support a maximum load current of 40 amps, the NX215 is built to handle the power requirements of two driving lights, ensuring optimal operation.

Waterproof & Durable: Built to withstand harsh environments, the NX215 is ideal for off-road conditions, offering durability and reliability even under tough conditions.

Kit Contents

1 x 12V Wiring Harness
1 x 24V Optional Relay
2 x High Beam Adaptor Cables
