NX210 – Standard Wiring Harness Kit For 1 x Light Bar

Name: NX210 – Standard Wiring Harness Kit For 1 x Light Bar
Brand: noxsolis
SKU: NX210
Price: 89.23 AUD
Availability: InStock

Product Description

The NOXSOLIS NX210 Standard Wiring Harness Kit is designed to provide an easy and secure connection for your light bar to your vehicle’s electrical system. This plug-and-play wiring kit ensures quick installation and reliable operation, whether you’re using your light bar for off-road adventures or day-to-day driving.

Warranty: 3 Years Standard Driving Conditions

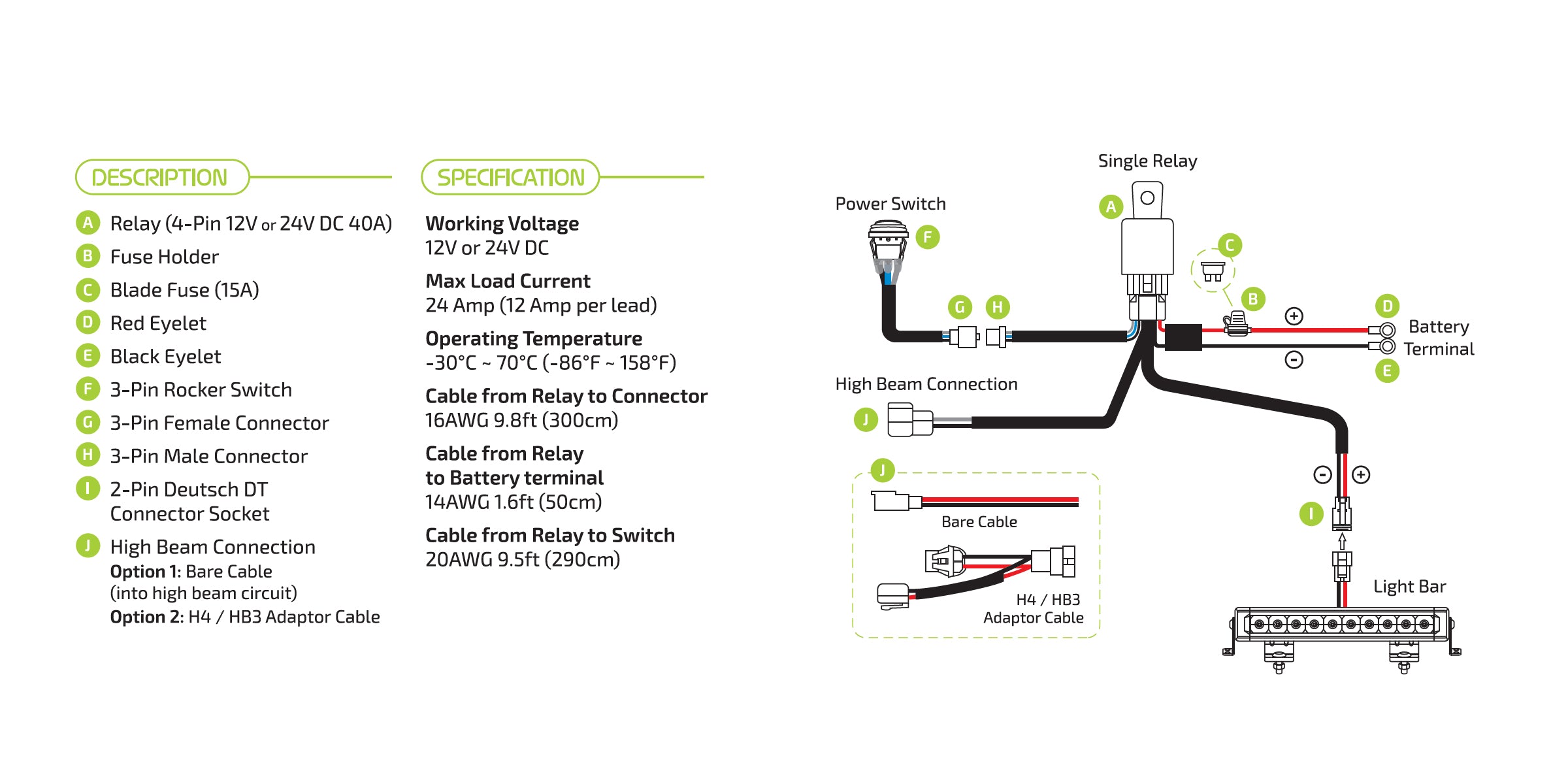

Specifications:

Working Voltage: 12V or 24V DC
Relay: 40A
Fuse: 15A
Max Load Current: 12 Amp
Operating Temperature: -30°C ~ 70°C (-86°F ~ 158°F)
Cable from Relay to Light Connector: 16AWG (300cm)
Cable from Relay to Battery Terminal: 14AWG (50cm)
Cable from Relay to Switch: 20AWG (290cm)
Light Connection: 2 Pin DT

NX210 Key Features

Plug & Play Installation: The NX210 wiring harness kit simplifies the process of connecting your light bar to your vehicle. It comes with everything you need for easy installation, making it suitable for both novice and experienced users.

12V & 24V Compatibility: This wiring harness works with both 12V and 24V electrical systems, offering flexibility for use in various vehicles such as trucks, SUVs, and off-road 4x4s.

High Beam Connections: The kit includes options for high beam connections (HB3, H4, or bare wires), allowing for compatibility with a wide range of vehicles and setups.

Durable Wiring and Relays: The NX210 is built to withstand the rigors of driving in various conditions. The harness comes with 12V and 24V relays to support different voltage systems, ensuring smooth and reliable operation of your light bar.

Temperature Resilience: The wiring harness is designed to operate in extreme temperatures, from -30°C to 70°C (-86°F to 158°F), ensuring durability and performance under a variety of environmental conditions.

Easy to Connect: With a 2 Pin DT connection, the NX210 ensures secure and stable connections, providing a reliable solution for connecting your light bar.
