NX8 – LED Light Bar – 20″ Double Row – Combo Beam

The NX8 light bar range has been developed as the perfect ‘all-round’ lighting option for any vehicle.

Whether it’s part of a larger lighting set up or simply on its own, the NX8 has a lot to offer.

NX8 Features

  • Includes all heavy duty installation hardware (side & bottom mount brackets)
  • Powerful and precise 5W Osram LEDs
  • 1 Lux at 650m – 8096 effective lumens
  • Clean, bright white light 5700K
  • Waterproof IP69K
  • Shock & vibration resistant
  • Ideal for off-road & highway driving
  • Approved to R10 EMI (radio Interference)
  • Current Draw: 6.9A @ 13.2V and 3.5A @ 24V
  • Voltage: 9-36V
  • Weight: 2.5kg

SKU: NX805 Category:

Description

NX8 – 20″ LED Light Bar
Double Row – Combo Beam

The NX8 light bar range has been developed as the perfect ‘all-round’ lighting option for any vehicle.

Whether it’s part of a larger lighting set up or simply on its own, the NX8 has a lot to offer.

Mounting flexibility for all applications



The NX8 Light Bars come with two different mounting options, side or bottom mount, allowing you to mount the product onto almost every type of bull bar, nudge bar, roof rack or number plate bracket possible. All of the required mounting hardware is supplied in the box.

The perfect combination of width and distance



The benefit of a combo beam is that it offers both very wide spread immediately in front of the vehicle, from fence to fence, as well as a strong punch down the middle of the road to improve road illumination.

With 8096 effective lumens and a beam that reaches 1 Lux at 650m, this is truly the perfect beam for Off-Road driving or On-Highway driving.

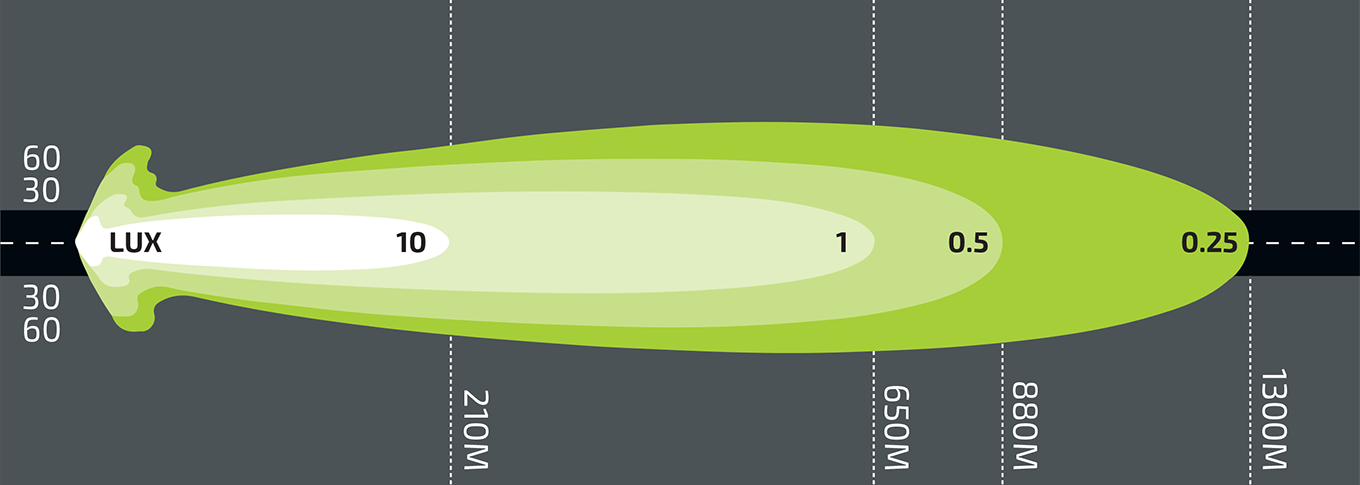

Lux Performance

Light-Bar-Schematic-Drawings

Installation Wiring Instructions

Detailed wiring instructions using the NX210 wiring harness can be found > HERE <

Warranty

3 Years

Kit Contents

1 x LED Light Bar
1 x pair of side and bottom mounting brackets (including all installation hardware)

Additional information

Weight 2.562 kg
Dimensions 62.5 × 12 × 12.5 cm
